All-in-One Real-Time Wireless Debugging Tool

Custom PCB + decoding software for wireless UART/I²C monitoring, voltage monitoring up to 20V, and firmware flashing.

Cover image for All-in-One Real-Time Wireless Debugging Tool

Highlights

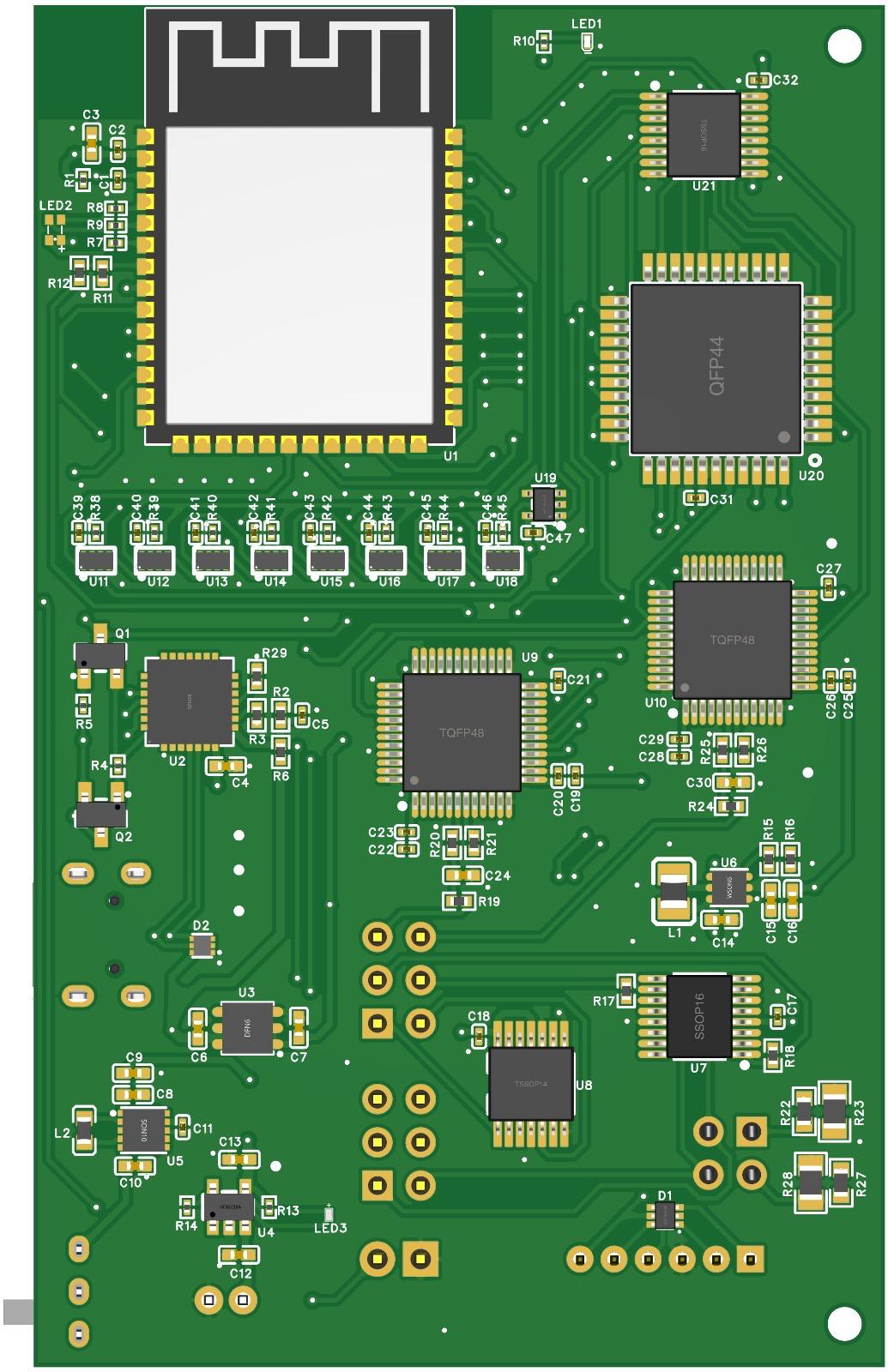

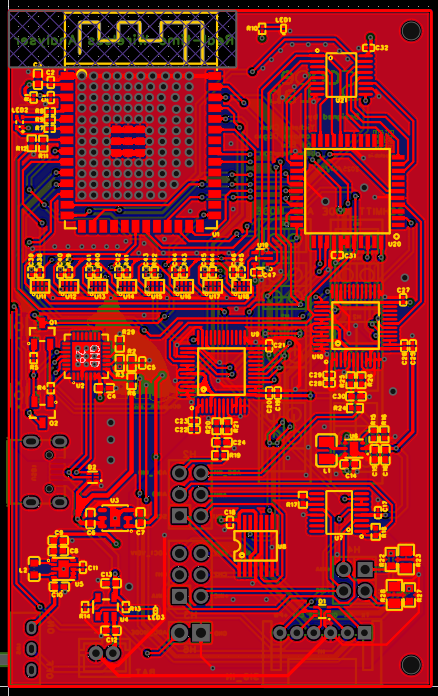

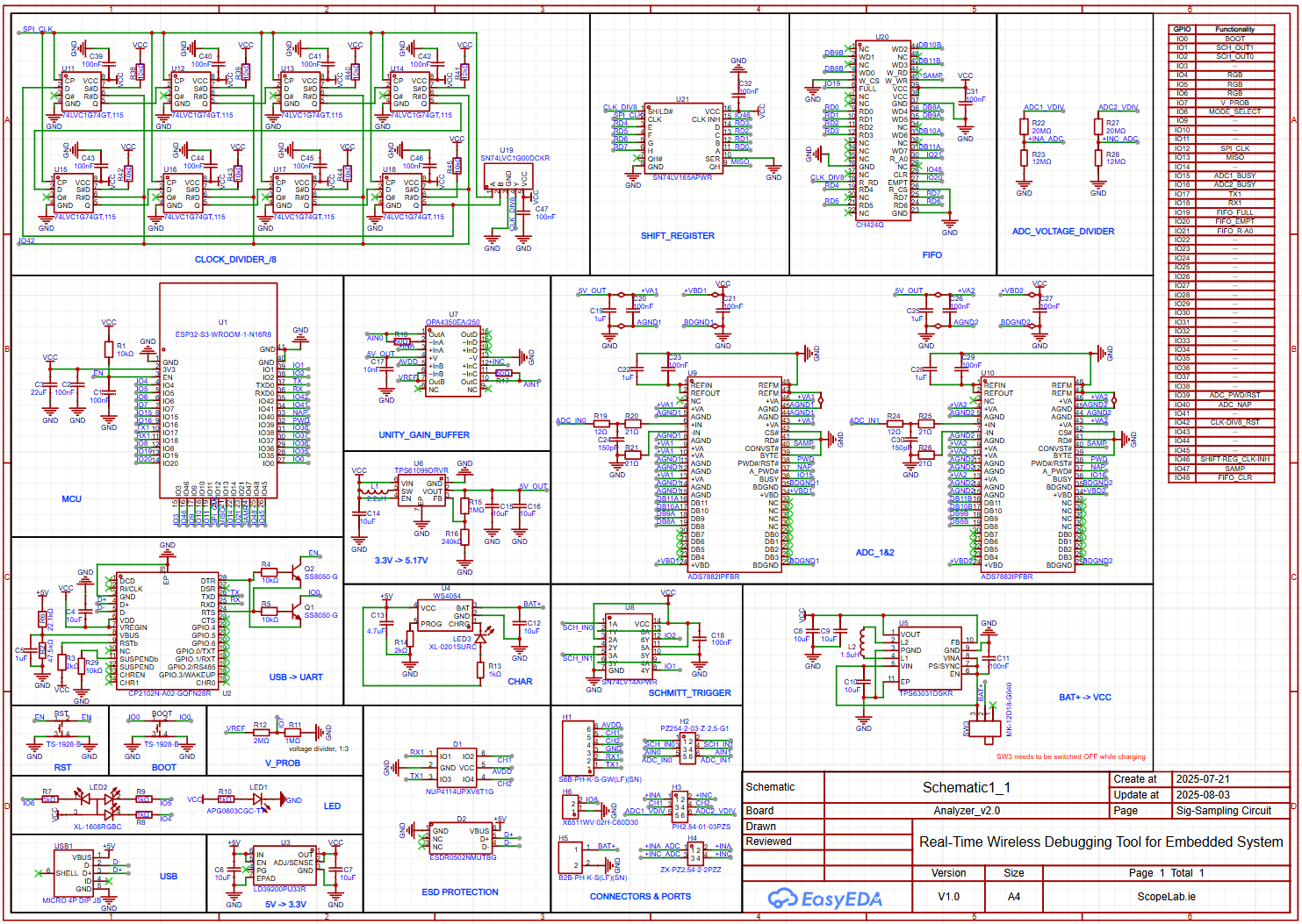

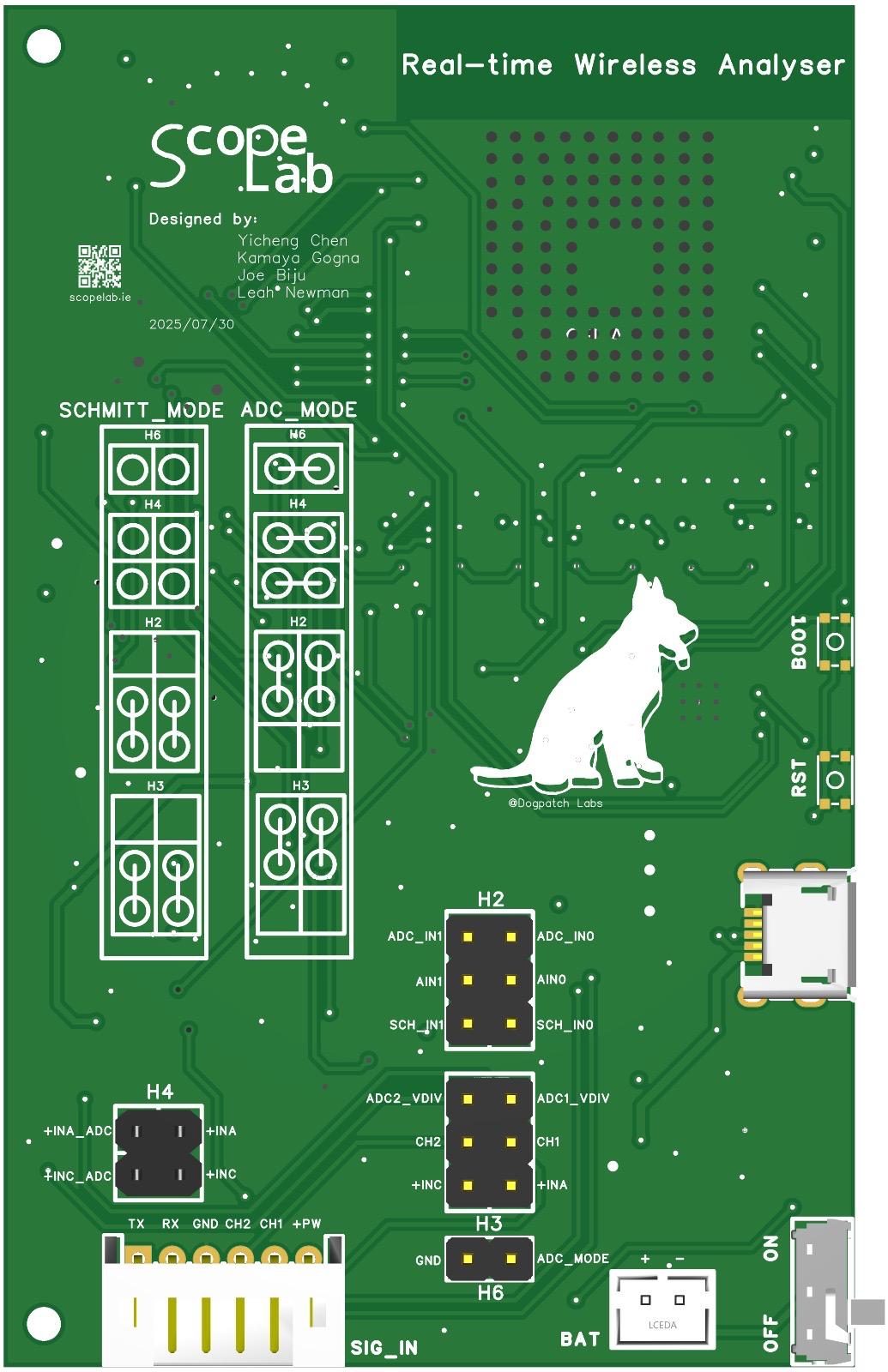

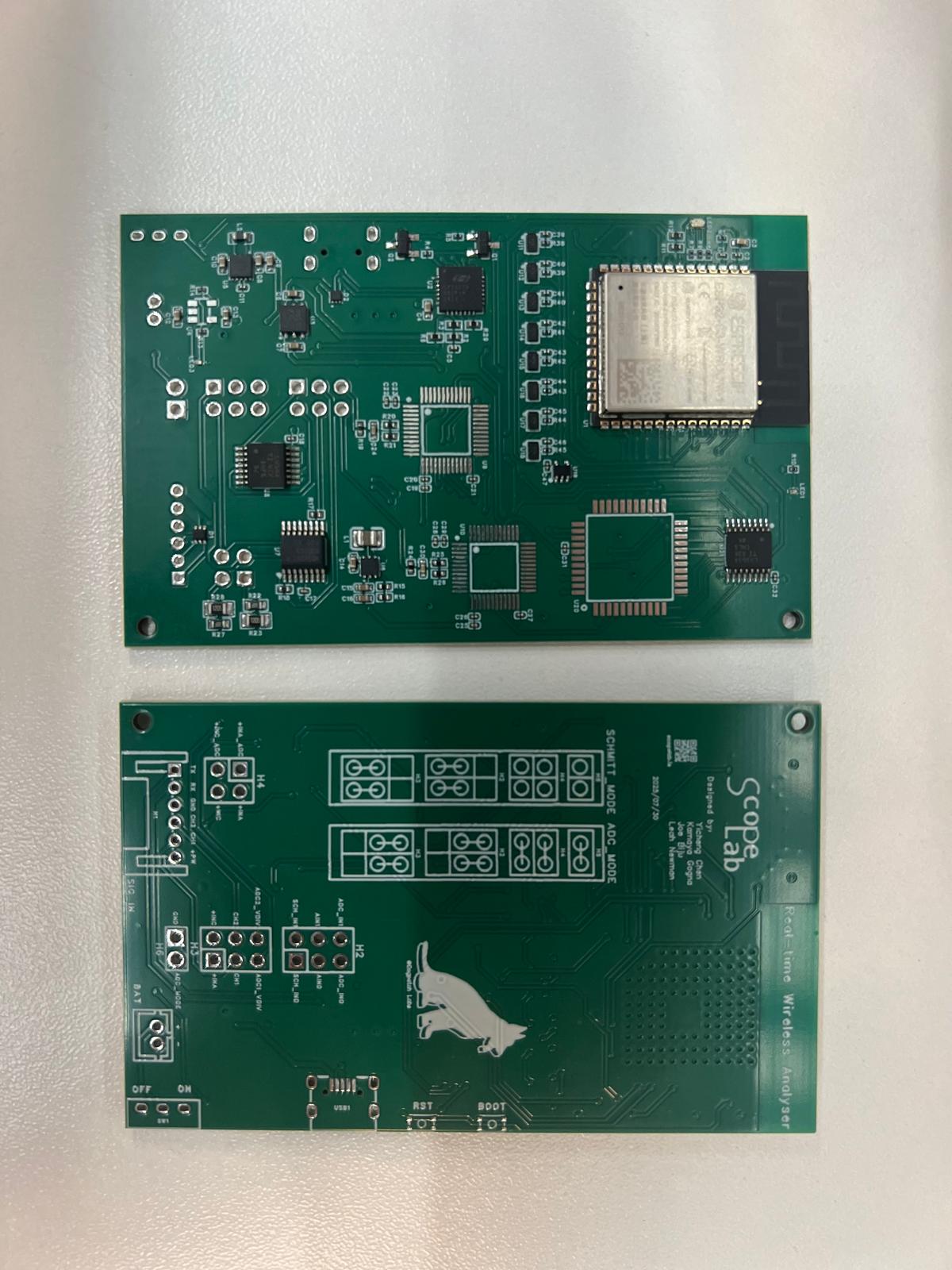

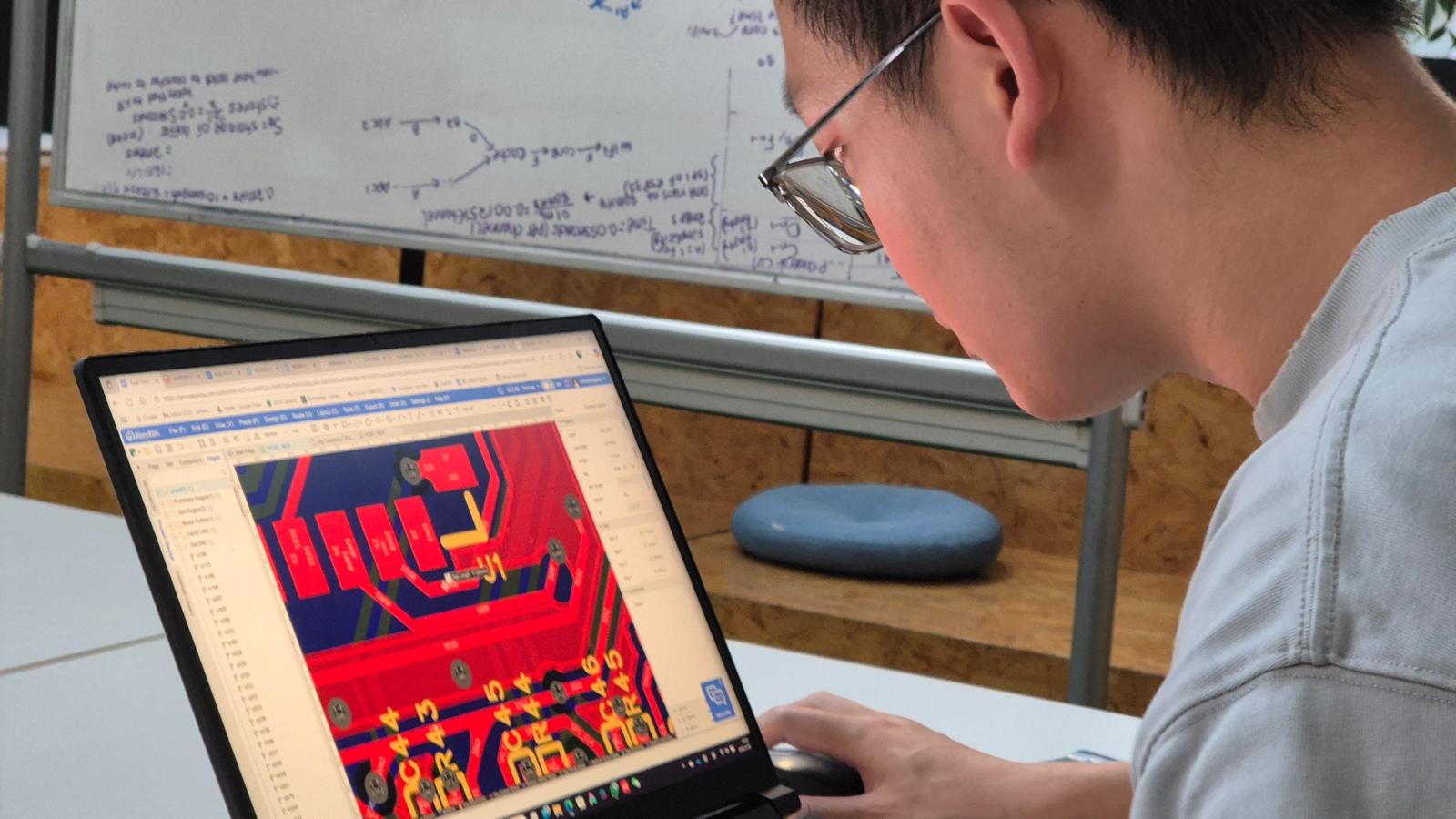

  • Designed a custom PCB enabling wireless monitoring of UART and I²C communication, system voltage (up to 20V), and firmware flashing.

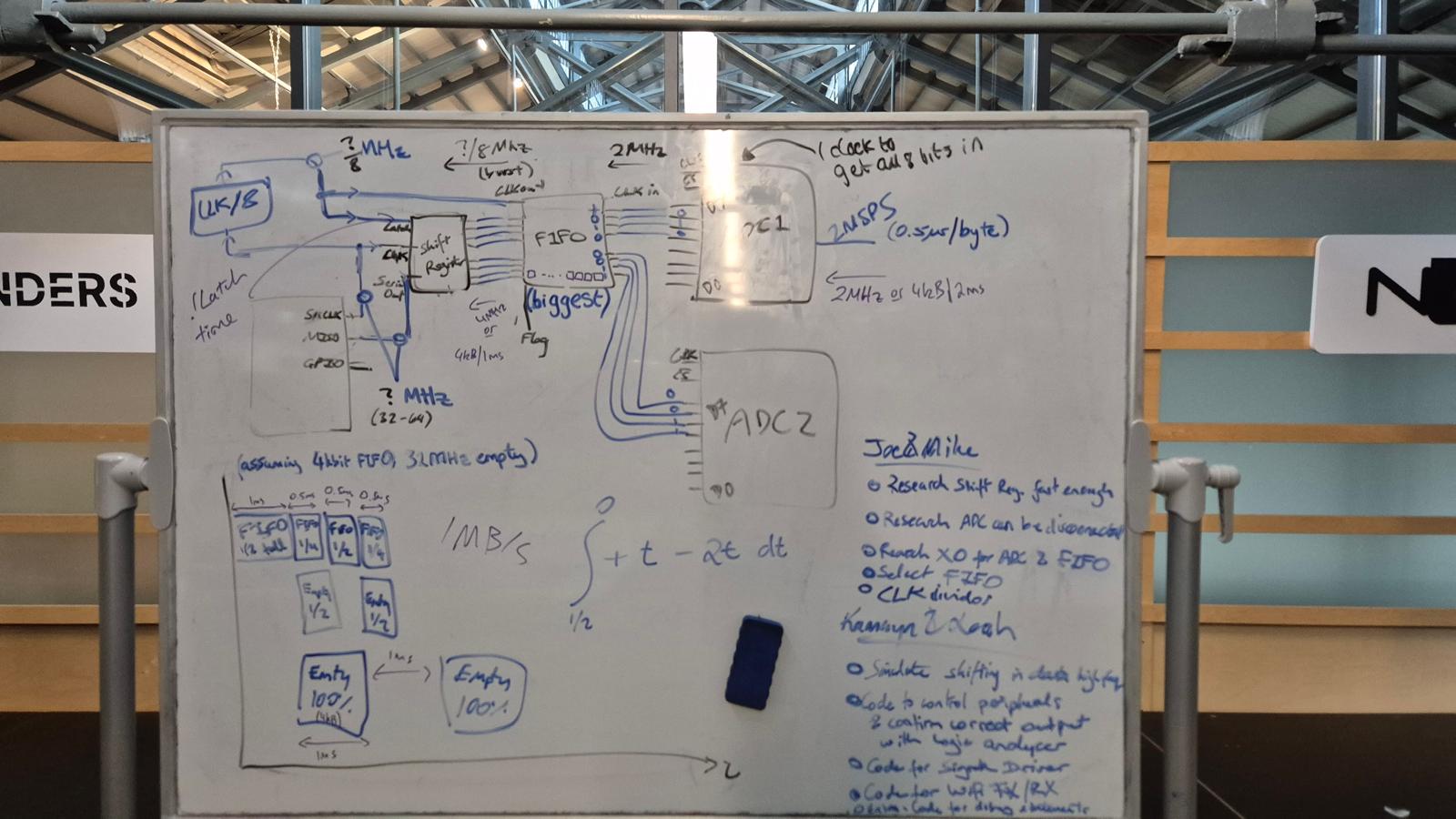

  • Integrated analog (ADC) and digital (Schmitt trigger) signal capture, with data streamed via USB dongle to custom decoding software.
  • Enhanced protocol analysis including headers, ACK/NACK, parity checks and so on.

Tags

Debug ToolingUARTI2CADCSignal Capture
